5454 Alloy Metal Aluminum Sheet Plate Features

  • Al 5454 is non-heat-treatable aluminum and magnesium alloy. It is a medium-strength alloy that can be hardened (strengthened) by cold work; It is commonly used to manufacture welded structures, pressure vessels, and Marine services.
  • The machining performance of Al 5454 is not satisfactory. It is best to use H-34 temper alloy processing. Oil-based lubricants are recommended, but very light cutting can dry; This alloy does have good hot – and cold – working properties.
  • It can be readily cold worked under any tampering or annealing conditions.
  • All commercial welding methods can be used in conjunction with Al 5454.
  • The alloy cannot be heat treated except by annealing to reduce cold working.
  • Although no temperature range data is available, the alloy can be hot forged.
  • Hot-working can take place in the temperature range of 700 to 400 degrees Fahrenheit
  • Cold working using the alloy can be easily accomplished by conventional methods. Satisfactory cold working can be performed in an annealed state or in any 5454-h32 aluminum, H-34, or H-111 temper state. If cold working stress needs to be reduced, annealing can be performed at 650 F to allow sufficient time for thorough heating followed by air cooling.
  • The conductivity is 32% of that of copper
  • The shear strength varies slightly, from 23 Ksi in the annealing state to 26 Ksi in the H-34 state.

5454 aluminum sheet properties

Chemical composition of 5454 aluminum plate

Al Cr Cu Fe Mg Mn Si Ti Zn Residuals
94.5 to 97.1% 0.05 to 0.20% ≤0.1% ≤0.4% 2.4 to 3.0% 0.5 to 1.0% ≤0.25% ≤0.2% ≤0.25% ≤0.15%

Typical Material Properties of 5454 Aluminum Alloy

Density Young’s modulus Electrical conductivity Ultimate tensile strength Thermal Conductivity Thermal Expansion
2.69 g/cm3, or 168 lb/ft3 70 GPa, or 10 Msi 34% IACS 240 to 300 MPa, or 35 to 44 ksi 130 W/m-K 22.3 μm/m-K

Temper Types

The most common tempers for 5454 aluminum are shown below:

  • O – Soft
  • H111 – Some work hardening imparted by shaping processes but less than required for H11 temper.
  • H22 – Work hardened by rolling then annealed to quarter hard.
  • H32 – Work hardened by rolling then stabilized by low-temperature heat treatment to quarter hard.
Form Condition Temper Tensile Strength Yield Strength Elongation
Sheet O -320 54 19 39
-112 37 17 30
-18 36 17 27
-75 36 17 25
212 36 17 31
300 29 16 50
400 22 15 60
500 17 11 80
600 11 7.5 110
700 6 4.2 130
H32 -320 59 36 32
-112 42 31 23
-18 41 30 20
75 40 30 18
212 39 29 20
300 32 26 27
400 25 19 45
500 17 11 80
600 11 7.5 110
700 6 4.2 130
H34 -320 63 41 30
-112 46 36 21
-18 44 35 18
75 44 35 16
212 43 34 18
300 34 28 32
400 26 19 45
500 17 11 80
600 11 7.5 110
700 6 4.2 130

5454 aluminum plate suppliers

Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufacturers and suppliers in China. We strictly control quality and take customer as the center. We hope to cooperate with you to provide you with high quality aluminum products and customized OEM services. If you would like to receive the latest and best prices per kilogram or per ton of standard weight, please contact us

Other names and designations include 3.3537, N51, and A95454. The following criteria cover alloys and their different tempering conditions:

  • ASTM B 209: Standard Specification for Aluminum and Aluminum Alloy Sheets and Plates
  • ASTM B 221: Standard Specification for Extruded Bars, Bars, Wires, Profiles, and Tubes for Aluminum and Aluminum Alloys
  • ASTM B 547: Standard Specification for Forming and Arc Welding Round Tubes of Aluminum and Aluminum Alloys
  • ISO 6361: Wrought aluminium and aluminium alloy sheet, strip and plate.

What is 5454 aluminum used for?

Pressure vessel,boiler,Highway transport organization,Welded construction

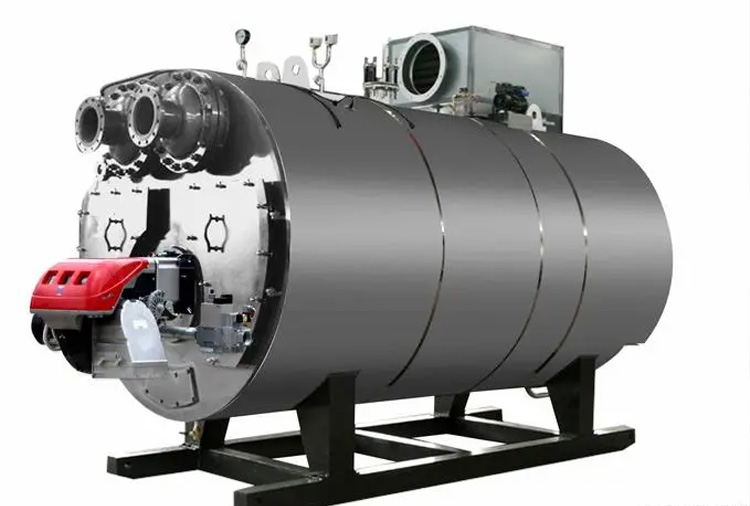

boiler

5454 aluminium boiler

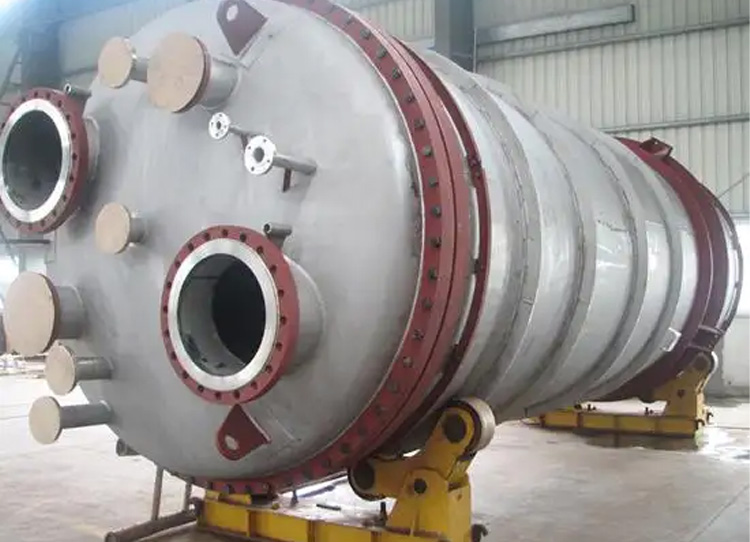

Pressure-vessel

5454 aluminum plate for Pressure vessel

Aluminum sheet manufacturers near me

Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.

Aluminum Sheet Manufacturers Near Me



Aluminum sheet plate standard export packing

  • The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
  • Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
  • Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
  • For export products, we use wooden boxes and pallets with fumigation mark for packaging;
  • We can also pack according to other packaging requirements of customers;
