what is 5005 aluminium sheet plate?

5005 alloy metal aluminium sheet plate belongs to 5000 series aluminum sheet . 5005 aluminium sheets can be cut to size at customers’ need. Mg is the principal element in the 5005 aluminium sheet and when it used as main alloying element or combined with Mn, high strength and no-heat treatable properties can be realized. 5005 aluminium sheet has many tempers available, such as 5005-H12, 5005-H14,  5005-H16,  5005-H18, 5005-H22,  5005-H24, 5005-H32, 5005-H34,  5005-H36,  5005-H38 etc.

Aluminium alloy 5005 contains nominally 0.8% magnesium. It has medium strength, good weldability, and good corrosion resistance in marine atmospheres. It also has the low density and excellent thermal conductivity common to all aluminium alloys. It is the most commonly used grade of aluminium in sheet and plate form.

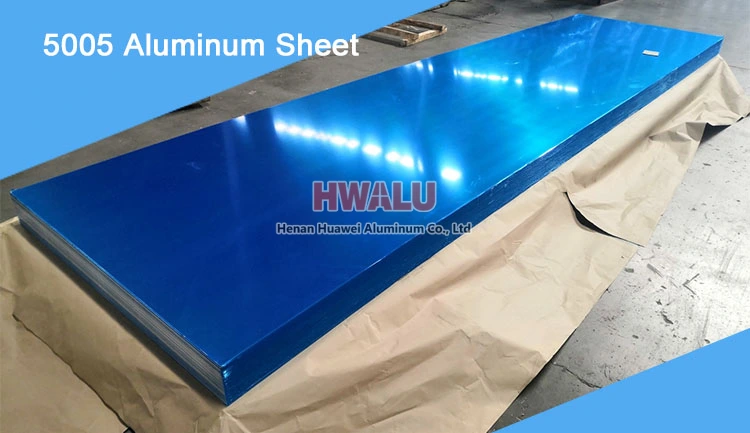

5005 aluminum sheet

5005 aluminum sheet

Specifications Of 5005 Aluminium Sheets

Equivalent alloy name a5005, 5005a, al5005, 5005al, aa5005, 5005aa, a5005p, 5005 aa, aa 5005, aw5005 grade etc
Temper Soft HO, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25, H26, H27, H28, H29, H30, H31, H32, H33, H34, H35, H36, H37, H38, H39, H46, H111, H112, H114, H116, H131, H321 etc
Width 610mm, 2650mm ( extra width ) etc
Thickness 1mm, 1.6mm, 2mm, 3mm, 4mm, 4.5mm, 5mm, 16mm, 20mm ( thick ) etc

Aluminium alloy 5005 is a lean aluminium magnesium alloy which can be hardened by cold work: it is not heat treatable to higher strength.

General Features 5005 is a non-heat treatable alloy with magnesium content. It can be strengthened (hardened) by cold working. It scores well in weld-ability, formability, and corrosion resistance (especially when anodized).
Forming 5005 has excellent formability, especially in softer tempers.
Welding 5005 alloy is noted for excellent welding characteristics. When 5005 material will be welded and then anodized
Machining 5005 machinability is generally fairly poor 。 Soft 5005 tempers machine worse than harder tempers. 5005 H34 and 5005 H38 can be machined, but with much more difficulty than many other aluminium alloys.

5005 Aluminum sheet Chemical Composition and& Mechanical Properties

Elements Si Fe Cu Mn Mg Cr Zn Ti Others Al
Content 0.3 0.7 0.2 0.2 0.5-1.1 0.1 0.25 0.15 Remain
Alloy
Temper
Specified thickness Tensile
strength
Yield
strength
Elongation
(MPa) (MPa) (%)
5005-H34 or 5005-H24 0.2~0.63mm 138.179 Min104 min 3
0.63~1.2mm min 4
1.2~6.3mm min 5
6.3~50mm min 8
5005-H32 or 5005-H22 0.2~600mm 118-158 Min83 min 3
5005-H14 145-186 min118 min1

5005 aluminum sheet properties by temper (typical)

Alloy Form Temper Tensile Strength Yield Strength Elongation
5005 sheet H12 20 19 10
5005 sheet H14 23 22 6
5005 sheet H16 26 25 5
5005 sheet H18 29 28 4
5005 sheet H32 20 17 11
5005 sheet H34 23 20 8
5005 sheet H36 26 24 6
5005 sheet H38 29 27 5

5005 alloy aluminum sheet applications and features

1. Medium Intensity. Similarly, 5005 aluminum sheet is a non-heat-treated alloy that is cold-machined to improve its strength.

2. Good Formability. Under the condition of hardening or annealing in semi-cold working, the plasticity of 5005 aluminum alloy is good, but in cold working, the strength increases, and the plasticity is low.

3. Excellent Weather Resistance. The strength of 5005 aluminum sheet, whose surface is treated by anodic oxidation, will not decrease with the decrease of temperature. No low temperature brittleness occurs

4. Physical Properties. 5005 aluminum tensile strength σb(MPa) is 100~205, elongation δ110 (%) is 1~8.

What is the price of aluminum 5005 H24 / H44?

H24 / H44 both represent the semi-hard state of 5005, and H44 is coated.
H: Strain hardening state.
H2n: Incomplete annealing after work hardening. The number after H2 indicates the degree of work hardening retained after incomplete annealing.
H4n: State of work hardening and painting.
N: a number representing the degree of work hardening:
N =2, 1/4 hard state
N =4, 1/2 hard state
N =6:3/4 hard state
N =8: Hard disk status
If n is 9, it indicates the hard state
For more information, please call +86-371-66302886 Henan Huawei Aluminum Co., Ltd

al5005

al5005

Applications for 5005 Aluminum sheet

The main content of 5005 aluminium sheet is Fe, Mg and Si, thus, it has good weld-ability and resistance to correction (especially when anodized), which resulting in suitable for marine applications. 5005 aluminium sheet is also a non-heat treatable alloy and it can be strengthened (hardened) by cold working. However, hot working should not normally be necessary. Besides, it scores well in formability, especially in softer tempers. The machinability of 5005 aluminium sheet is generally fairly poor. 5005-H34 and 5003-H38 can be machined, but with much more difficult than many other aluminium alloys.

Alloy 5005 Aluminium Sheet is typically used for:

  • Buildings – Roofing, Cladding, Corrugated Sheet
  • Signage, Road Signs & Name Plates
  • Food & Chemical Equipment
  • Furniture
  • Anodised Parts
  • HVAC Equipment
  • Packaging
  • Pipe and Tube
  • Can Bodies

Applications For 5005 Aluminum Sheet

Applications For 5005 Aluminum Sheet

Commonly used in the manufacture of appliances, small boats, gas lines, refrigerator panels, and utensils. 5005 is also used in architectural components, and as an electrical conductor. Especially useful where excessive finishing costs are encountered in the use of 3003 alloys due to surface roughness upon drawing.

5005 Aluminum Sheet for Curtain Wall

5005 aluminum sheet can be used as high-end wide-format curtain wall material, which has the advantage of excellent anodic oxidation effect compared with the commonly used 3003 aluminum sheet for curtain wall. In addition, 5005 aluminum alloy is light, only one-fifth of the marble, one-third of the glass curtain wall, and can be perfectly combined with the glass and stone curtain wall material, presenting a fashion, trend, unique modern architectural style. It is worth mentioning that, the cost-effective price, as well as the low maintenance cost in the later period, make the architects more favor to the 5005 aluminum sheet!

Other Usages

Besides, 5005 aluminum sheet is also commonly used for building decoration parts, vehicle interior materials, instrument panel, oxidizing materials, cooking utensils, conductors and other manufacturing.

Aluminum sheet manufacturers near me

Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.

Aluminum Sheet Manufacturers Near Me



Aluminum sheet plate standard export packing

  • The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
  • Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
  • Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
  • For export products, we use wooden boxes and pallets with fumigation mark for packaging;
  • We can also pack according to other packaging requirements of customers;
