How is embossed aluminum sheet produced

  1. Select aluminum material: first select the aluminum plate that meets the requirements. Commonly used aluminium materials include aluminum alloy plate, pure aluminum plate, etc., and their thickness is generally between 0.5mm-3mm.
  2. Surface treatment: The surface of the aluminium plate is cleaned, degreased, pickled, etc. to remove impurities such as oil and scale to ensure surface smoothness and adhesion.
  3. Embossing: The aluminum plate is embossed with a mold, usually divided into stamping and rolling. Stamping is to place the aluminum plate on the mold and shape it by pressure, while rolling is to send the aluminum plate and the patterned roller into the machine together, and the aluminum plate will be patterned after being squeezed by the roller.
  4. Surface coating: The surface coating of the embossed aluminum plate is generally done with fluorocarbon paint or polyester paint to increase the corrosion resistance and weather resistance of the aluminum plate.
  5. Cutting: According to customer needs, the aluminum plate is cut to length to form an embossed aluminum plate that meets the specifications.
  6. Packaging and transportation: Finally, the aluminum plate is packaged and shipped out of the warehouse.

Embossed aluminum plate is an aluminium plate that has been embossed, and is usually used in architectural decoration, interior decoration and other fields.

Specifications

Alloy: 1050 1100 1060 1070 3003 3105
Tempering: O, H12, H14, H16, H18, H22, H24, H26, H32
Thickness:  0.25~2.0mm
Width:  1200-1500mm
Embossing thickness: 0.08~0.25 mm
Surface treatment: polished, bright, anodized, colored coating

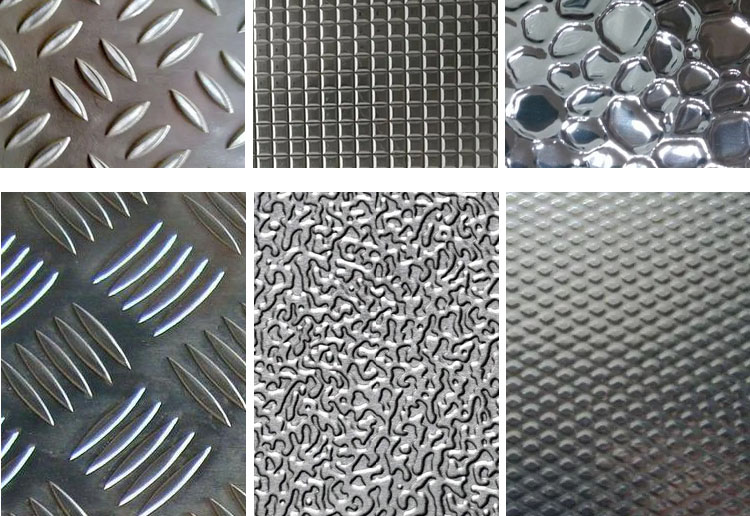

Texture: diamond pattern, orange peel pattern, diamond pattern, five-rib pattern, etc.

embossed aluminum shape

embossed aluminum shape

Aluminum sheet manufacturers near me

Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.

Aluminum Sheet Manufacturers Near Me



Aluminum sheet plate standard export packing

  • The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
  • Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
  • Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
  • For export products, we use wooden boxes and pallets with fumigation mark for packaging;
  • We can also pack according to other packaging requirements of customers;
