what is Perforated aluminum plate?

Perforated aluminum plate refers to pure aluminum or aluminum alloy material made by pressure processing (shear or saw cut) to obtain a rectangular cross-section, uniform thickness of rectangular material.

The perforated board is widely used in real life, and can be used as a decorative board (curtain wall board, wall sound-absorbing board, and ceiling decoration), beautiful and generous. Can be made into a variety of vessels, has corrosion resistance, durable.

Common parameters of perforated aluminum sheet

Specification 1000*2000mm, 1200*2400mm, 1250*2500mm, 1500*3000mm, 1000*2400mm, 1200*3000mm, etc. (can be customized according to customer needs)
Thickness 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.8mm, 1.85mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, etc.

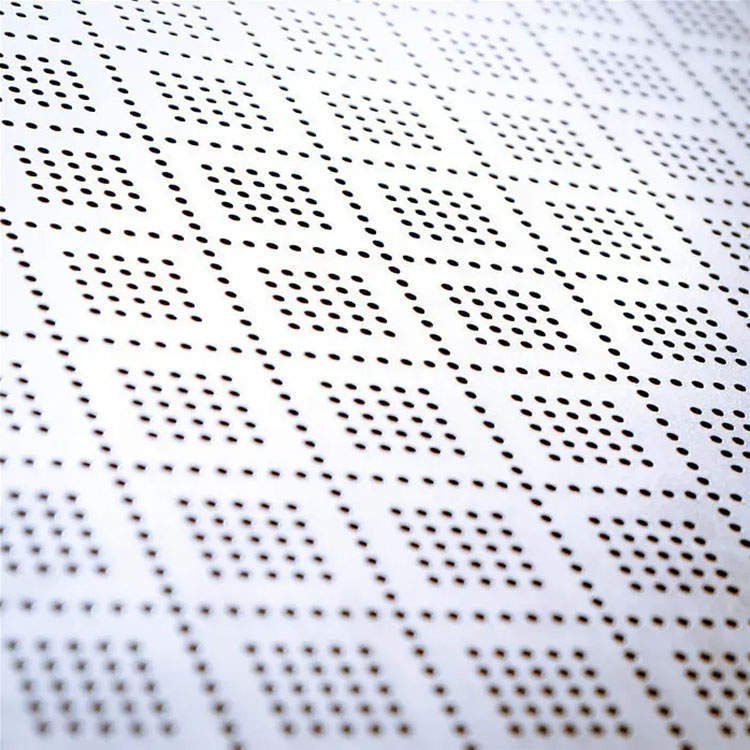

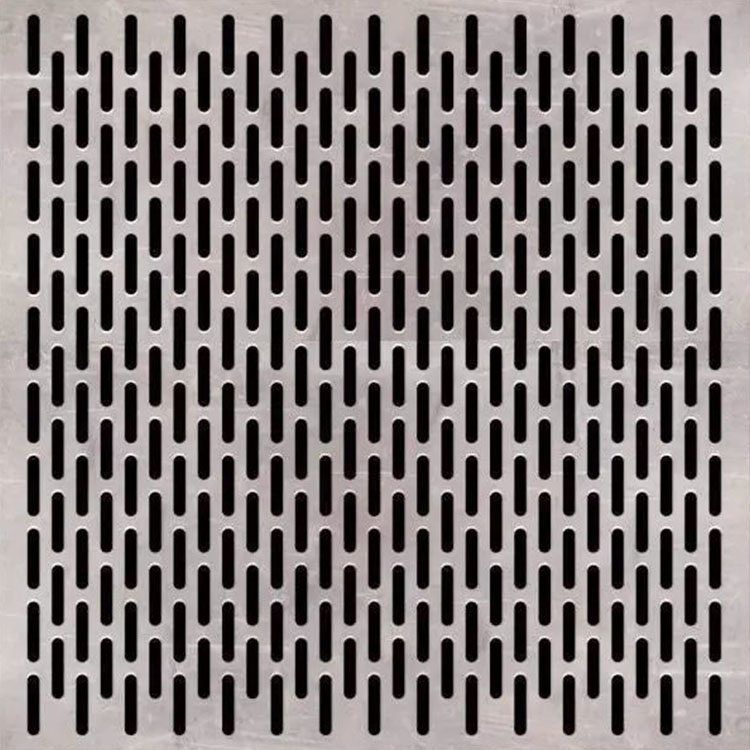

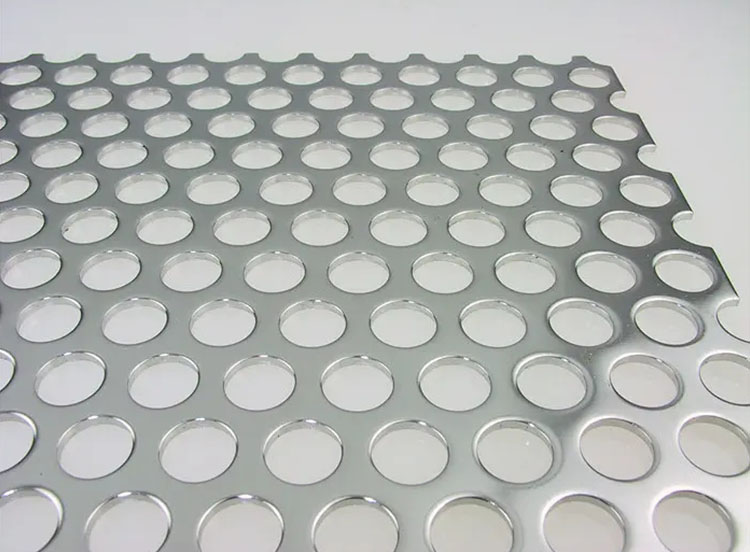

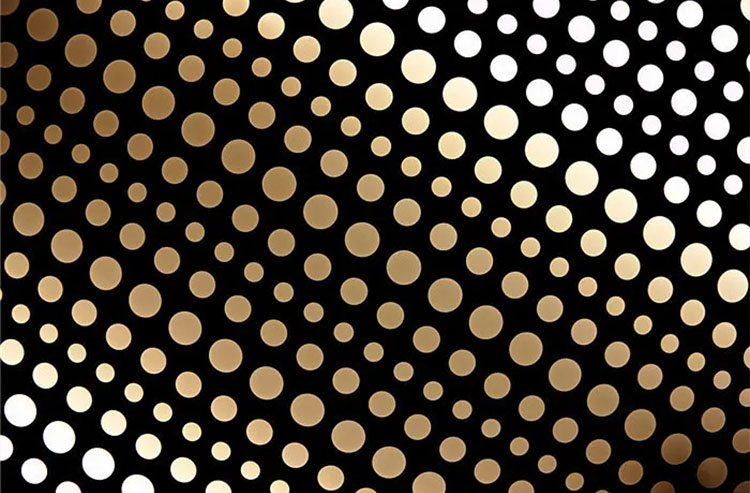

Hole pattern Rectangular hole, square hole, diamond hole, round hole, long round hole, hexagonal hole, cross hole, triangular hole, long waist hole, plum blossom hole, fish scale hole, pattern hole, character net, herringbone hole, pentagram hole , Irregular holes, drum holes, special-shaped holes, louver holes, etc.
Aperture Φ3mm, Φ4mm, Φ4.2mm, Φ5mm, Φ5.2mm, Φ6mm, Φ8mm, Φ10mm, Φ15,mm, Φ20mm, Φ25,mm, Φ30mm, Φ35mm; (can be customized according to customer needs)
Hole spacing Generally, it will refer to the aperture size and can also be customized according to customer requirements.
Punching rate (punching density) Punching rate = punching area/area of ​​the whole punched aluminum plate, and the punching rate refers to the percentage of the total area of ​​the perforated holes in the entire area within the range of the perforated area.
Color Grey, white, silver, beige, black, silver grey, champagne, red, orange, etc.
Surface treatment Fluorocarbon spraying, baking paint, powder spraying, wood grain transfer printing, brushed sanding, enamel treatment
Application Shading, ventilation, noise reduction, decoration



Tips on punching aluminum plate

  • The thickness of perforated aluminum plate is generally 0.5mm–3.5mm.
  • The thickness of perforated aluminum plates commonly used in curtain walls and ceilings is usually greater than 1.5mm thick.
  • When the punching rate is greater than 50%, in order to ensure the flatness and effect of the plate surface, an aluminum plate with a thickness of less than 3.0mm cannot be used.

The current situation of punched aluminum plate

  1. The most common is the hole diameter of 6mm and the spacing of 15mm.
  2. According to the current mechanical equipment, the maximum perforation rate can reach about 65%, and the size of the perforated plate is required to be within the range of 1500*3000. If it exceeds this range, the perforation requires secondary positioning.
  3. The higher the perforation rate of the perforated aluminum plate, the greater the influence on the flatness of the formed aluminum plate, and the inspection standard is lower than the corresponding regulations of the normal aluminum plate.

Advantages of perforated aluminum sheet

  1. As the outer skin of the building, the impact of the perforated aluminum plate on the ventilation, shading, lighting and other aspects of the building can directly or indirectly affect the thermal performance of the building.
  2. Light weight and high strength.
  3. Corrosion resistance and strong plasticity.
  4. The film formed by the used coating has good non-adhesion, which is convenient for cleaning and maintenance.
  5. The aluminum itself is green and safe, can be recycled and recycled, and is environmentally friendly and energy-saving.
  6. Simple installation and maintenance, saving construction costs.
  7. Good bending strength and good wind pressure resistance.

Aluminum sheet manufacturers near me

Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.

Aluminum Sheet Manufacturers Near Me



Aluminum sheet plate standard export packing

  • The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
  • Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
  • Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
  • For export products, we use wooden boxes and pallets with fumigation mark for packaging;
  • We can also pack according to other packaging requirements of customers;
