what is a 5754 aluminum sheet?
5754 alloy metal aluminum sheet plate belongs to the 5000 series aluminum sheet, which is a typical alloy of Al-Mg elements ( almg3 ) with moderate strength, excellent processing performance, good corrosion resistance, weldability, and easy forming characteristics. 5754 aluminum sheets of different heat treatments are the main materials for manufacturing in the automotive industry (such as car doors, mold, and seal components), and the canning industry.
5754 aluminum sheets have excellent corrosion resistance, especially to seawater and industrially polluted atmospheres. It has higher strength than 5251. This high strength makes 5754 Alu highly suited to flooring applications. After rolling, 5754 Al spontaneously softens until it reaches a stable condition.
5754 aluminum sheet belongs to Al-Mg-Si aluminum alloy, it has a wide range of applications in the field of the high-level aluminum processing industry. With the vigorous development of the railway transport market, and the globalization of the automobile era, the processing needs for aluminum marine sheet plate, rail transportation, and high-grade car complex parts are increasing, 5754 aluminum alloy has a great market prospect. 5754 Aluminum sheets of different heat treatment temper are the main materials of the automobile manufacturing industry (car door, mold, seals) and canning industry.
5754 Aluminum Sheet
Chemical Composition of 5754 aluminum sheet
| Si | Cu | Mg | Zn | Mn | Cr | Fe | Ti | Other | Others total | Al |
| ≤ 0.4 | ≤ 0.1 | 2.6 – 3.6 | ≤ 0.2 | ≤ 0.5 | / | ≤ 0.4 | ≤ 0.15 | ≤ 0.05 | ≤ 0.15 | remainder |
Specifications of 5754 aluminium sheets
| Equivalent alloy name | a5754, 5754a, aa5754, 5754aa, al5754, al5754a, 5754 aa, aa 5754, jis a5754p, al5754 class, aw5754 grade etc |
| Temper | Soft HO, H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25, H26, H27, H28, H29, H30, H31, H32, H33, H34, H35, H36, H37, H38, H39, H46, H111, H112, H114, H116, H131, H321 etc |
| Temper feature | - O – Soft
- H111 – Some work hardening imparted by shaping processes but less than required for H11 temper
- H22 – Work hardened by rolling then annealed to quarter hard
- H24 – Work hardened by rolling then annealed to half hard
- H26 – Work hardened by rolling then annealed to three-quarter hard
|
| Standard | ASTM B209, GB/T 3880, EN AW etc |
| Width | 610mm, 2650mm ( extra width ) etc |
| Thickness | 1mm, 2mm, 3mm, 4mm, 4.5mm, 5mm etc |
Aluminum 5754 has excellent corrosion resistance, especially to seawater and industrially polluted atmospheres.It has higher strength than 5251. This high strength makes Aluminium 5754 highly suited to flooring applications.After rolling, Aluminium 5754 spontaneously softens until it reaches a stable condition.
Applications for 5754 aluminum sheet
- 5754 aluminum sheet is widely used for welding structures, storage tanks, pressure vessels, ship structures, and offshore facilities, and transport tanks. In addition, currently, the domestic application of this alloy are various in high-speed rail, commonly used in high-speed rail barriers, sheet metal, and internal structure welding.
- Easy coloring in post-processing makes it often used to produce high-end doors and windows. For the same area, Al-Mg alloy doors and windows are much lighter than other materials. The 5754 aluminium products which manufactured. has excellent performance, and are widely praised in the doors and windows markets in domestic.
- 5754 aluminium is also suitable for the military industry of domestic, such as fuel tanks of aircraft.
Aluminium 5754 is used in:
- Treadplate
- Shipbuilding
- Vehicle bodies
- Rivets
- Fishing industry equipment
- Food processing
- Welded chemical and nuclear structures
- Railway passengers inside and outside walls, floor, panels, and other

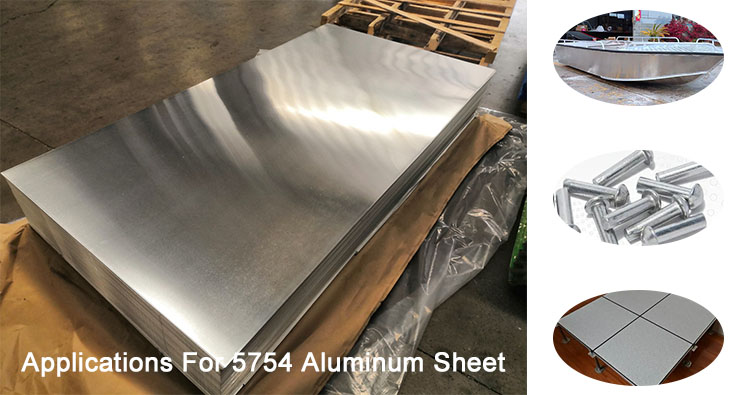

Applications For 5754 Aluminum Sheet
5754 aluminum sheet for gas station
The most important point is that the anodized 5754 aluminum sheet for the gas station roof will not burn at the high temperature of 600℃, and will not produce toxic gas, fire prevention, and environmental protection. In addition, 5754 aluminum alloy with excellent corrosion and weather resistance, light texture, easy to process and shape, and easy to disassemble, is used for gas station roof production of the appropriate choice!
Other Usages
In practice, customized 5754 aluminum plates are also widely used in automobiles/ ship components, high-speed railway noise barriers, decorative boards, fuel tanks, pressure vessels, tanks, and so on. There is more information about the corresponding uses of 5754 aluminum properties.
Railway passengers inside and outside walls, floor, panels, and other
Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufacturers and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high-quality aluminum material products and custom OEM services. If you want to get the newest and best prices by per kg or per ton standard weight, please contact us.
Aluminum sheet manufacturers near me
Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.
Aluminum sheet plate standard export packing
- The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
- Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
- Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
- For export products, we use wooden boxes and pallets with fumigation mark for packaging;
- We can also pack according to other packaging requirements of customers;
