Introduce you to 2014 aluminum sheet

2014 aluminum sheet alloy elements for the copper, known as hard molybdenum, with high strength and good cutting processing performance;

2014 aluminum sheet used in the requirements of high strength and hardness (including high temperature) of the occasion, also known as 2 military aluminum ;

2014 aluminum sheet application: heavy forgings, thick plates, and extruded materials for aircraft structural parts, multi-stage rocket first-class fuel tank and spacecraft parts, wheels, truck frame and suspension system parts.

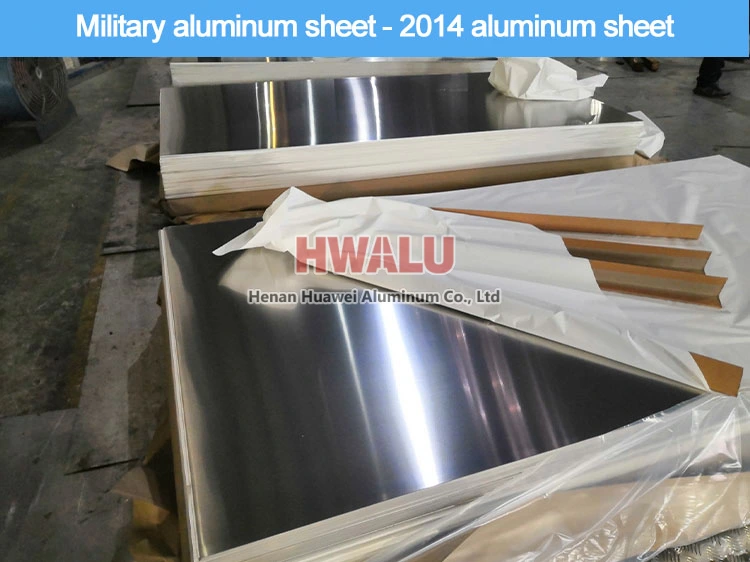

Military aluminum sheet

2014 aluminum sheet chemical composition

AlloySiFeCuMnMgCrZnTiOthers-EachOthers TotalAl Min
2014 aluminum sheet0.5-1.20.70.253.9-5.00.4-1.20.10.250.150.050.15Remainder

2014 aluminum sheet Typical material properties

Density2.80 g/cm3, or 175 lb/ft3.
Young‘s modulus73 GPa, or 11 Msi.
Electrical conductivity34 to 50% IACS.
Ultimate tensile strength190 to 480 MPa, or 28 to 70 ksi.
Thermal Conductivity130 to 190 W/m-K.
Thermal Expansion23 μm/m-K.

2014 Specification for heat treatment of aluminum sheet

1) Homogenizing annealing: heating 475 ~ 490℃; Keeping warm for 12-14h; Furnace cooling.

2) Complete annealing: heating 350 ~ 400℃; The insulation time is 30 ~ 120min depending on the effective thickness of the material. At the speed of 30 ~ 50℃/h, the furnace is cooled to 300℃, and then air cooled.

3) Rapid annealing: heating 350 ~ 460℃; Holding time 30-120min; Air cooling.

4) Quenching and aging: quenching 495 ~ 505℃, water cooling; Natural aging 96h at room temperature.

Status: Aluminum and aluminum alloy extruded bar (≤22mm, H112, T6 state)

Advantages of 2014 Aluminum Sheet

1、2014 aluminum sheet with high strength and good cutting processing performance, can adapt to the high-temperature environment;

2、2014 aluminum sheet low density, good thermal conductivity and conductivity, manufacturing process performance is good;

3、HuaWei Aluminum “1 +1” ultra-wide, ultra-thick aluminum production line, the production of 2014 aluminum sheet with good mechanical properties, strength, easy processing, small density, widely used in aerospace and military fields;

Application field 2014 aluminum sheet

  • Rivets for aircraft structure (skin, frame, rib, frame, etc.)
  • Missile components
  • The truck wheel
  • Propeller components and other structural parts.
