Overview of 5083 Alloy Thin Aluminum Sheet
5083 alloy metal aluminum sheet plate belongs to Al-Mg-Si 5000 series aluminum sheet. Its main contents are Magnesium and Silicon except for Aluminium. Over 4.0% of Magnesium enables 5083 aluminium plates to have excellent resistance to correction, and easily to welded. By adding cooper, 5083 aluminum plate has 28% Electrical conductivity. 5083 aluminum plate also has good forming characteristics for either hot or cold working. But hardening is accomplished by means of cold working only. Besides, 5083 aluminium plate does have good strength but non-heat-treatable.
Alloy 5083 aluminium plates have higher strength than 5052 plates and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for welding and can be hardened by cold work. Because Alloy 5083 exhibits excellent resistance to general corrosion, it is used in marine applications. Since Alloy 5083 is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market.
5083 aluminum sheet exhibits higher strength than 5052 sheet. it’s known for exceptional performance in extreme environments. 5083 is highly resistant to attack by both seawater and industrial chemical environments. Its greater corrosion resistance, especially against salt water corrosion, makes it an excellent material for marine and processing applications. 5083 aluminium sheet performs well in extremely cold environments without becoming brittle. It is easy to form, stamp and weld.
Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat-treatable alloys but is not recommended for use in temperatures in excess of 65°C.

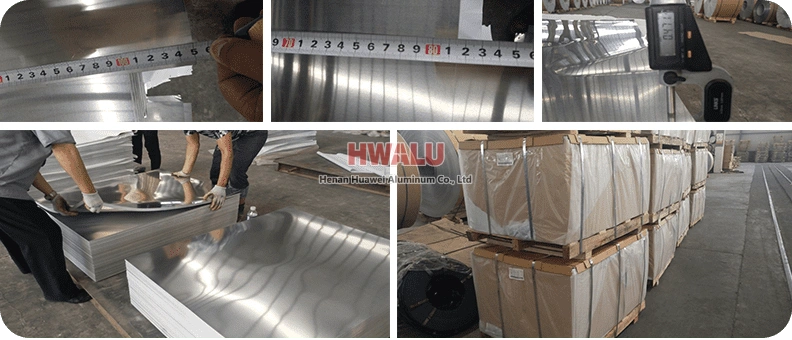

5083 aluminum sheet
Specifications of 5083 aluminium sheets
Equivalent alloy name
a5083, 5083a, aa5083, 5083aa, al5083, al5083a, a 5083, aa 5083, jis a5083p, al5083 class, aw5083, en5083 grade etc
Temper
Soft HO (h0), H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25, H26, H27, H28, H29, H30, H31, H32, H33, H34, H35, H36, H37, H38, H39, H46, H48, H111, H112, H114, H116, H131, H321 etc
Sizes: 1000 x 2000 mm, 1220mm x 2440mm ( 4×8, 8×4 ), 3×1.5 m, 2000x6000x3mm, 2000×6000 etc
Thickness
1mm, 1.2mm, 1.6mm, 2mm, 2.4mm, 2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 16mm ( thick ) etc
Other thicknesses: 1/8 inch ( .125 ), 1/4″ etc
Chemical Composition of 5083 aluminum sheet
| Grade |
chemical composition % |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Ni |
Zn |
Remark |
Ti |
Zr |
other |
Al |
Remark |
| single |
total |
| 5083 |
0.400 |
0.400 |
0.100 |
0.40-1. |
4.0-4.9 |
0.05-0. |
— |
0.250 |
— |
0.150 |
— |
0.05 |
0.15 |
margin |
LF4 |
5083 Aluminum sheet Mechanical Properties
| Typical Temper |
Tensile Strength |
Yield Strength |
Elongation |
Thickness |
Width |
Length |
| (KSI) |
(KSI) |
(%) |
(mm) |
(mm) |
(mm) |
| O(annealed) |
42 |
21 |
14 |
0.5-600 |
500-3100 |
Max1600 |
| H122 |
43 |
23 |
10 |
| H116 |
46 |
33 |
10 |
| H321 |
48 |
33 |
10 |
Applications for aluminium sheet 5083 grade
5083 aluminium plate has vast applications for its properties above. It is commonly used in the manufacture of marine, auto aircraft cryogenics, storage tank, railway cars, coachwork, armor plate, building construction, pressure vessels, slotted aerofoils, ACP panel, window etc.
- LNG ship construction
- Pressure vessels
- Storage tanks
- Welded structures (high strength)
- Armor plate
- Drilling rigs
- cryogenic applications
- marine equipment
- truck components
Marine grade 5083 aluminum sheet for boat
5083 class alloy aluminum sheet is highly resistant to attack by both seawater and industrial chemical environments. Its greater corrosion resistance, especially against salt water corrosion, makes it an excellent material for marine and processing applications. 5083 aluminium sheet performs well in extremely cold environments without becoming brittle. It is easy to form, stamp and weld. So 5083 aluminum sheet is widly used for ship building.
Special 5083 aluminum plate
- Super flat 5083 aluminum sheet
- High strength 5083 aluminum sheet
Aluminum sheet manufacturers near me
Henan Huawei Aluminum Co., Ltd. is the leader of many aluminum manufactures and suppliers in China. We strictly control the quality and focus on customers. We hope to have in-depth cooperation with you and provide you with high quality aluminum material products custom OEM services. If you want to get the newest and best prices by per kg ( kilogram ) or per ton standard weight, please contact us.
Aluminum sheet plate standard export packing
- The aluminum plate is paperclip or laminated to ensure that the surface of the aluminum plate is intact and free of scratches;
- Plastic film ( HDPE, PVC, PE or PET etc ) protection or hard kraft paper wrapping is used to prevent moisture and rain to ensure that the aluminum plate is clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the quality of our products in East China and South China, where there is more rain);
- Installed with wooden brackets and reinforced with steel straps to avoid collision during transportation and to ensure the geometry of the aluminum plate remains unchanged;
- For export products, we use wooden boxes and pallets with fumigation mark for packaging;
- We can also pack according to other packaging requirements of customers;
